我们很高兴宣布正式发布 Visual Components 4.10 版本——"突破边界，智造无界"。本次更新为制造仿真与机器人离线编程带来了全新工具与功能优化。

Visual Components 4.10 聚焦操作体验优化与生产力提升，助您更高效地模拟、测试与优化生产流程。我们致力于让从编程到生产规划的高阶制造任务更流畅、更直观。

本次更新的核心功能包括：

• CADENAS 3Dfindit 模型库插件（适用于专业版、高级版及对应离线编程产品）：在 Visual Components 中直接调用数百万3D CAD模型，加速设计流程，实现组件无缝集成。
• 引导式工作流（全版本适用）：针对关键任务提供逐步指引，既适合新用户快速上手，也能帮助资深专家提升效率，让复杂仿真任务更易掌握。
• 欧姆隆连接插件（适用于高级版及高级离线编程版）：通过全新连接插件直连欧姆隆机器人控制器，加速机器人程序的测试与验证流程。
• 聚焦模式（全版本适用）：通过聚焦设计特定区域简化复杂布局，支持细节放大查看、精准编辑，确保项目扩展时始终保持清晰的工作界面。

以上只是部分亮点——Visual Components 4.10 还有更多更新，旨在让编程和仿真更快、更易用。更多详情，请务必查阅我们的 **博客文章**、 **发布视频**和 **发布说明**。 **准备升级了吗？** Visual Components 4.10 的安装程序可在我们的 **下载页面**获取。当前的 Visual Components 用户需要新的产品密钥和有效的维护合同才能升级。您可以 **在此提交升级申请**。 **如果您的维护合同已过期**，请联系您的客户经理或 **联系我们的销售团队**，了解升级至 Visual Components 4.10 的更多信息。 **感谢您成为我们社区的一员！** 我们迫不及待想看到您用 Visual Components 4.10 创造的成果。 **祝您制造愉快！** Visual Components 团队 --- **用户提问：** 请问欧姆龙 TM 机器人是否未包含在连接性中？ **回答：** 关于欧姆龙 TM 机器人的连接性支持，建议您查阅 Visual Components 4.10 的官方发布说明或联系技术支持团队获取准确信息。通常，软件版本会更新对各类机器人品牌和型号的兼容性，具体细节需以官方文档为准。blog post,release video, andrelease notes.

Ready to upgrade? Installers for Visual Components 4.10 are available on ourDownloads page. Current Visual Components users will need a new product key and a valid maintenance contract to upgrade. You cansubmit your upgrade request here.

If your maintenance contract has lapsed, feel free to reach out to your account manager orcontact our sales teamto learn more about upgrading to Visual Components 4.10.

Thank you for being a part of our community! We can’t wait to see what you create with Visual Components 4.10.

Happy manufacturing!

The Visual Components Team

Could you tell me if the Omron TM robot is not included in the connectivity?

The Omron Robot plugin was developed using ACE software and version 4.7 of ACE API. As a result, ACE version 3 is not supported. Currently, you cannot use the plugin with Omron TM robots.

For more info:omron_robot

OK，thanks a lot!

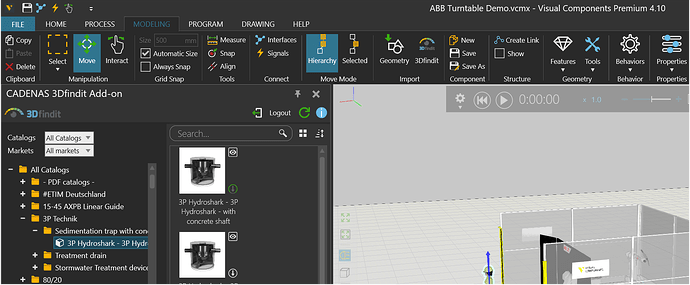

Please you can guide me for download cad from 3Dfindit .I try to download but i can’t . Thank you .

Screenshot 2024-11-20 1028201692×701 163 KB

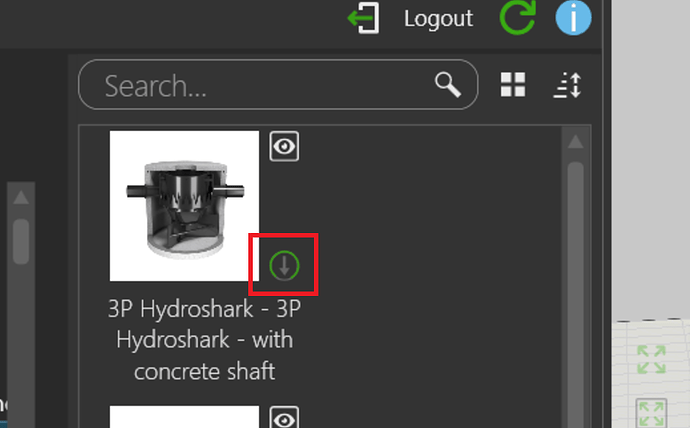

You need to download the model first, it seems your download is not completed yet.

image778×483 58.5 KB

https://help.visualcomponents.com/4.10/Premium/en/English/Component%20Modeling/3DFindit.htm

Thank you so much for solve.

I click icon download but it longtime the icon is load not complete i don’t know why??

Can you connect this webpage
https://webapi.partcommunity.com/partserver/applets/html/preview.html?language=&firm=visualcomponents&file=https://webapi.partcommunity.com/partserver/preview/0202411201520533292937610e898ce/download.xml&options=&enableBridge=

Yes, I can connect this link .

OK, I think this is OneDrive issue
Cadenas is saved in C:\Users<User name>\OneDrive - Visual Components\Documents\Visual Components\4.10\My Cadenas Models

You can recommended me to change file location ? .

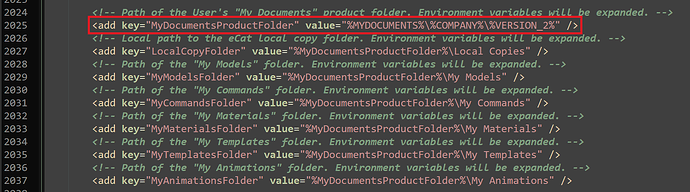

In VisualComponents.Engine.exe.config, modify this line, and then delete the eCat database
C:\Users<User name>\AppData\Local\Visual Components\Visual Components Premium 4.9\eCatalog\Database to update the config

image1706×475 198 KB

Thank you so much this issue can fix follow up your team . Next version please fix Onedrive Issue .

Just checking, did you solve the issue by editing MyDocumentsProductFolder value?

Yes . I edit >> VisualComponents.Engine.exe.config >> .-add key=“MyDocumentsProductFolder” value=“C:\Users [User]\Documents%COMPANY%%VERSION_2%” /-. restart program .Now I can download cad from 3dfindit .

Hello,

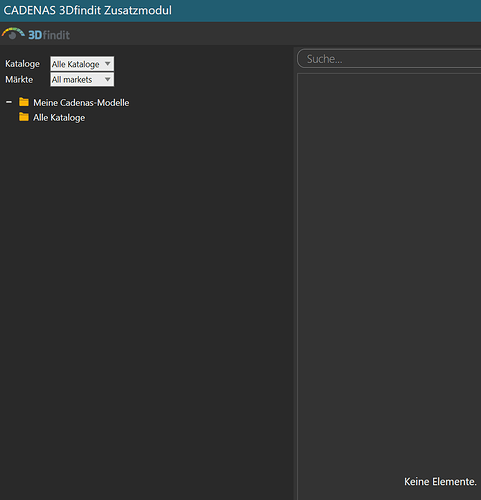

there are no components in my Version.

How can i add them?

image974×1012 19.3 KB

I have the exact same issue as you. Did you find a solution to this problem yet?

For context, I am running Visual Components Professional 4.10. I also still have an older version (Professional 4.8) installed on my device, which does not support the CADENAS 3DFindit add-on yet.

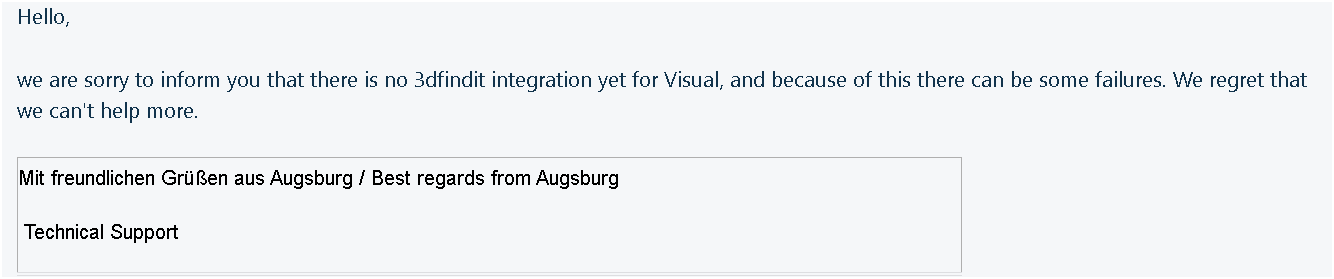

I heard the issue is on CADENAS side, they made some change on the server and VC would need an update to adapt.
